About NVIDIA Mosaic

NVIDIA® Mosaic takes multiple displays and Quadro or NVS GPUs and presents them as a single logical GPU to the operating system.

In this way, using multiple-display hardware acceleration, this technology lets you use multiple displays to create a larger, virtual canvas with minimal performance impact on 2D or 3D applications.

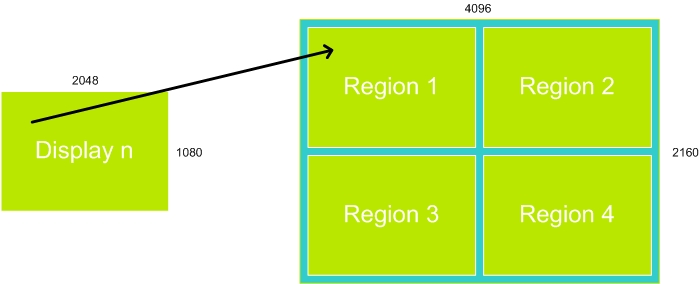

Each display defines a unique uniform region within a larger virtual canvas.

Feature Differences Between Mosaic and Mosaic with Sync-capable GPUs

Feature	Basic Mosaic	Mosaic with Sync-capable GPUs
Windows OS	Windows 7 and later	Windows XP, Windows 7 and later
Product Support	Quadro Plex, Quadro, Quadro FX, Quadro NVS, and NVS products	Quadro Plex; SLI or Quadro Sync -supported Quadro and Quadro FX products
Application Spanning	Supported	Supported
Task bar spanning	Supported	Supported
Panel Bezel Correction	Supported	Supported
Projector Overlap	Not Supported	Supported
Seamless Multiple Display	Not Supported	Supported
Seamless 4k Panel or Projector	Not Supported	Supported
Stereoscopic 3D Mosaic	Not Supported	Supported

Multiple Mosaic Configurations

Under Windows 7 and later, using NVIDIA Kepler-class GPUs and later, you can set up more than one Mosaic configuration within a system.

For example, with two such GPUs you can configure a 2x2 Mosaic arrangement on one GPU and a separate 2x2 arrangement on the other GPU.

Limitations

Maximum Resolution

The maximum resolution depends on the Quadro product used.

Quadro 5000/6000, Quadro Plex 7000
These GPUs have a maximum desktop limitation of 16,384 x 16,384 pixels. For proper operation, do not configure display settings that will total greater than 16,384 pixels in either the horizontal or vertical direction. For example, a 1 x 4 array consisting of panels of 6400 x 1600 pixel output each would have a total pixel output dimension of 25,600 x 1600. This would exceed the 16,384 limitation in the horizontal direction.
Quadro FX 5800, Quadro Plex D2, all others
These GPUs have a maximum desktop limitation of 8192 x 8192 pixels. For proper operation, do not configure display settings that will total greater than 8192 pixels in either the horizontal or vertical direction. For example, a 1 x 4 array consisting of panels of 2560 x 1600 pixel output each would have a total pixel output dimension of 10240 x 1600. This would exceed the 8192 limitation in the horizontal direction.

The total pixel output for a configuration is the total horizontal pixels by total vertical pixels. Total size on the Set Up Mosaic page calculates the total pixel dimension for you. The total pixels displayed is a combination of the Display configuration, resolution setting, and edge overlap settings.

Minimum Resolution

Individual displays must be set to a resolution greater than 800 x 600 pixel output. If a display in your configuration is set to one of the smaller pixel output resolutions (e.g., 640 x 480 or 800 x 600), the system will revert to single display mode.

Use Matching Displays

All displays must be the same type and use the same type of connection (for example, all DVI-to-DVI or all DVI-to-VGA). Mixed display use is not supported.
