2-Display 4-Connections

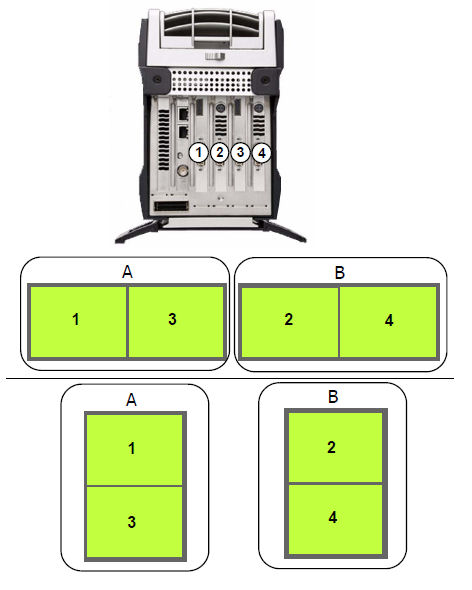

Connect the numbered connector to the display located at the corresponding mosaic position.

Display group "A" corresponds the left eye for passive 3D stereo and display group "B" corresponds to the right eye.
