4-Display 8-Connections

This passive 3D stereo configuration requires two Quadro Plex D2 units (see Using Two Quadro Plex Units).

Connect the numbered connector to the display located at the corresponding mosaic position.

Display group "A" corresponds the left eye for passive 3D stereo and display group "B" corresponds to the right eye.

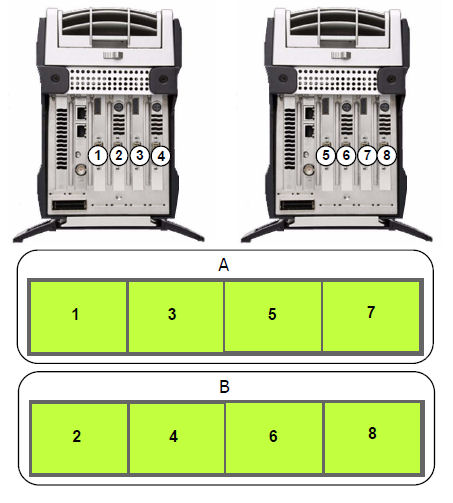

1x4 Array

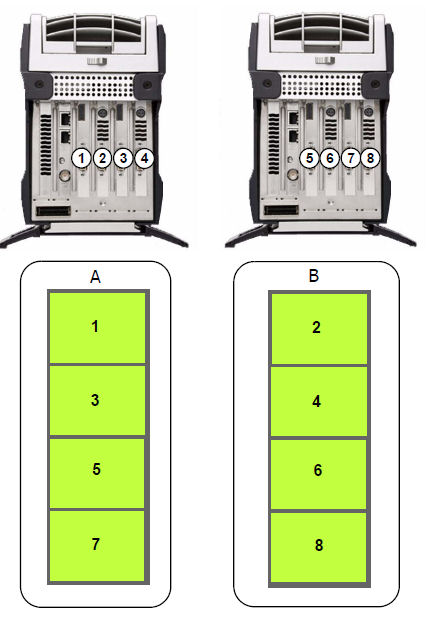

4x1 Array

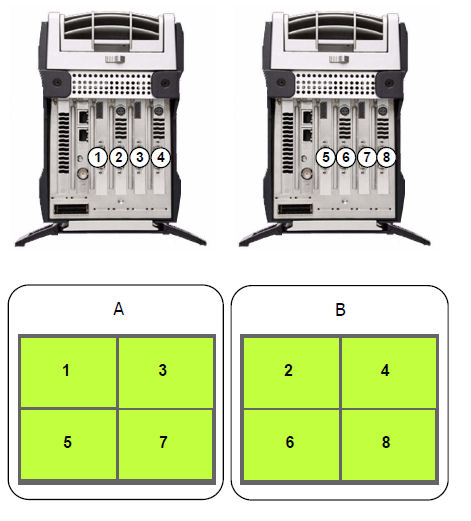

2x2 Array

Related topics

• How to set up Mosaic (Windows Vista and later)

• How to set up Premium Mosaic (Windows XP)

• About NVIDIA Mosaic
