Powering the new era of computing.

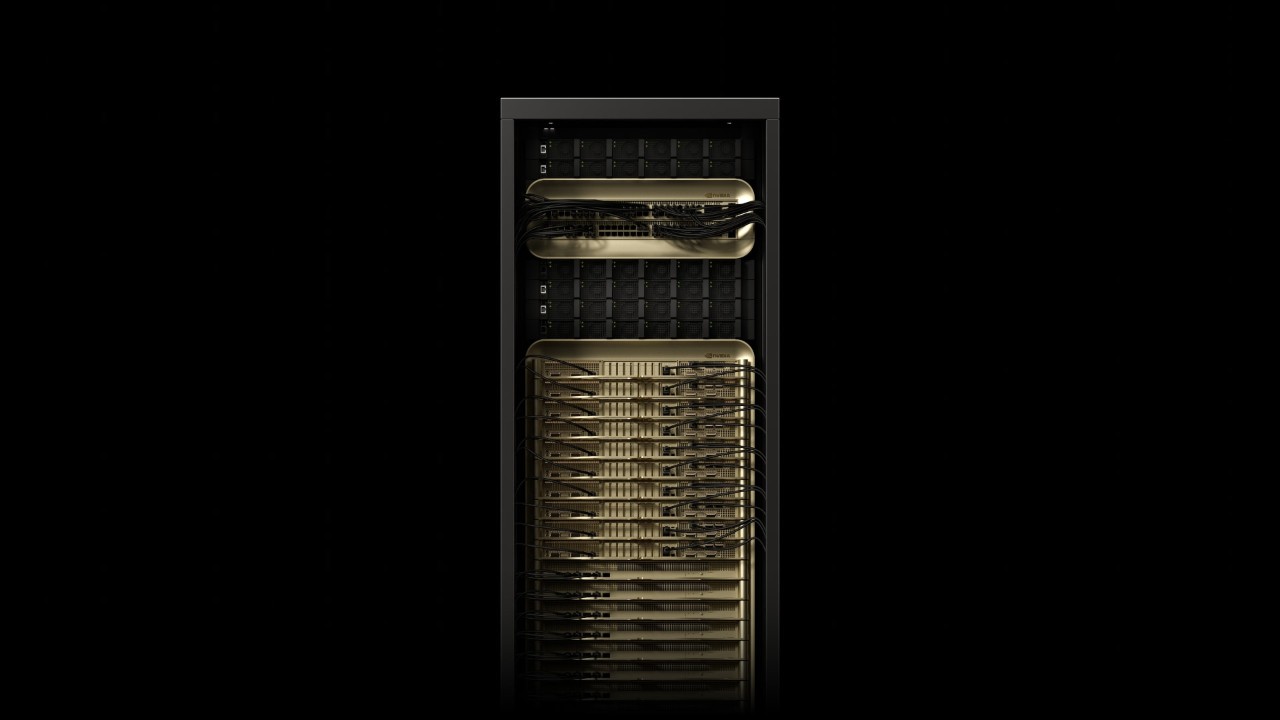

GB200 NVL72 connects 36 Grace CPUs and 72 Blackwell GPUs in a rack-scale design. The GB200 NVL72 is a liquid-cooled, rack-scale solution that boasts a 72-GPU NVLink domain that acts as a single massive GPU and delivers 30X faster real-time trillion-parameter LLM inference.
The GB200 Grace Blackwell Superchip is a key component of the NVIDIA GB200 NVL72, connecting two high-performance NVIDIA Blackwell Tensor Core GPUs and an NVIDIA Grace CPU using the NVIDIA® NVLink®-C2C interconnect to the two Blackwell GPUs.
Highlights
LLM inference and energy efficiency: TTL = 50 milliseconds (ms) real time, FTL = 5s, 32,768 input/1,024 output, NVIDIA HGX™ H100 scaled over InfiniBand (IB) vs. GB200 NVL72, training 1.8T MOE 4096x HGX H100 scaled over IB vs. 456x GB200 NVL72 scaled over IB. Cluster size: 32,768
A database join and aggregation workload with Snappy / Deflate compression derived from TPC-H Q4 query. Custom query implementations for x86, H100 single GPU and single GPU from GB200 NLV72 vs. Intel Xeon 8480+
Projected performance subject to change.
Features
NVIDIA GB200 Grace Blackwell NVL4 Superchip unlocks the future of converged HPC and AI, delivering revolutionary performance through four NVIDIA NVLink™-connected Blackwell GPUs unified with two Grace CPUs over NVLink-C2C.
Specifications
GB200 NVL72 | GB200 Grace Blackwell Superchip | |
Configuration | 36 Grace CPU : 72 Blackwell GPUs | 1 Grace CPU : 2 Blackwell GPU |
FP4 Tensor Core2 | 1,440 PFLOPS | 40 PFLOPS |
FP8/FP6 Tensor Core2 | 720 PFLOPS | 20 PFLOPS |
INT8 Tensor Core2 | 720 POPS | 20 POPS |
FP16/BF16 Tensor Core2 | 360 PFLOPS | 10 PFLOPS |
TF32 Tensor Core | 180 PFLOPS | 5 PFLOPS |
FP32 | 6,480 TFLOPS | 180 TFLOPS |
FP64 | 3,240 TFLOPS | 90 TFLOPS |
FP64 Tensor Core | 3,240 TFLOPS | 90 TFLOPS |
GPU Memory | Bandwidth | Up to 13.5 TB HBM3e | 576 TB/s | Up to 384 GB HBM3e | 16 TB/s |
NVLink Bandwidth | 130TB/s | 3.6TB/s |
CPU Core Count | 2,592 Arm® Neoverse V2 cores | 72 Arm Neoverse V2 cores |
CPU Memory | Bandwidth | Up to 17 TB LPDDR5X | Up to 18.4 TB/s | Up to 480GB LPDDR5X | Up to 512 GB/s |
1. Preliminary specifications. May be subject to change. |
